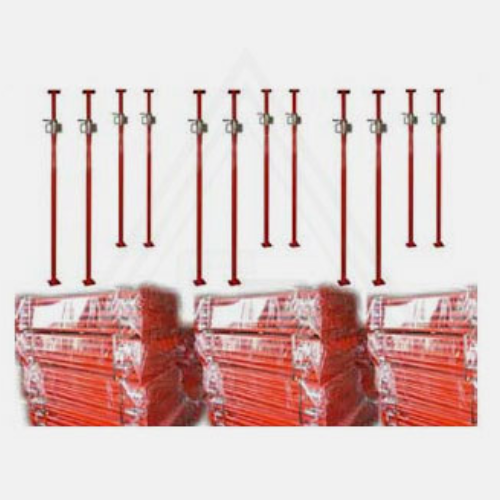

Adjustable Scaffolding Props/Jacks
CLIFF offers a range of adjustable scaffolding jacks—light, middle, and heavy-duty—widely used for slab formwork and shuttering support. These jacks are available with painted, pre-galvanized, or hot-dip galvanized finishes.
Our light-duty adjustable scaffolding jacks are a popular choice for civil construction slab work. For more demanding projects, such as industrial construction and infrastructure like bridges, CLIFF’s middle-duty and heavy-duty adjustable jacks provide high load capacities for concreting.
The maximum adjustable height of CLIFF scaffolding jacks can be customized to suit specific slab and beam formwork heights, ranging from 3.0m to 5.5m. We also offer customization for the steel grade of both inner and outer tubes, with options including S210 and S355, to meet diverse customer requirements.
CHART
Prop Type / Component |
Tube Type | OD x Thickness (mm) |
---|---|---|
Light Duty | Inner Tube | OD48.3×1.6-2.0mm |
Outer Tube | OD60.3×1.80-2.00mm | |
Middle Duty | Inner Tube | OD48.3×2.4mm |
Outer Tube | OD60.3×2.4mm | |
Heavy Duty | Inner Tube | OD48.3×2.8-4.0mm OD60x3.0-4.0mm OD76x3.0-4.0mm |
Outer Tube |
OD60.3×2.8-4.0mm |
