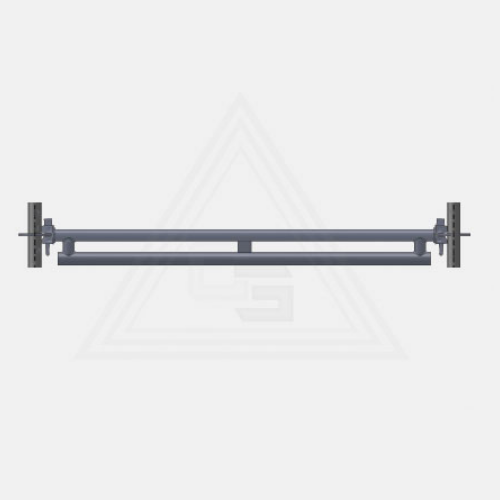

Double Ledger
A Double Ledger in Ring Lock scaffolding consists of two parallel horizontal tubes connected by vertical or diagonal bracing. It attaches to the rosettes on the standards, providing enhanced stability and load-bearing capacity compared to a single ledger. The double structure distributes weight more effectively, making it suitable for supporting heavier loads or wider platforms. This configuration also increases the rigidity of the scaffold bay, contributing to overall structural integrity. Double Ledgers are essential for robust and safe scaffolding setups in demanding construction environments.
CHART
Product Code | Bay Length (Inches) | Bay Length (Meters) |
---|---|---|
CS-DL4-7 | 55.12 | 1.4 |
CS-DL5 | 60 | 1.524 |
CS-DL5-2 | 61.89 | 1.572 |
CS-DL5-4 | 63.98 | 1.625 |
CS-DL6 | 72.01 | 1.829 |
CS-DL6-9 | 81.57 | 2.072 |
CS-DL7 | 83.86 | 2.13 |
CS-DL8 | 96.06 | 2.44 |
CS-DL8-6 | 101.26 | 2.572 |
CS-DL10 | 120.12 | 3.051 |
