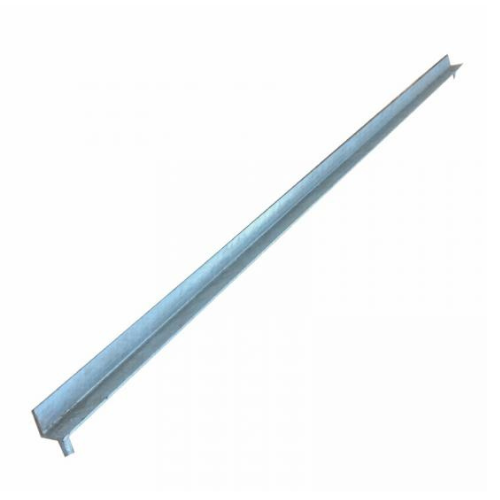

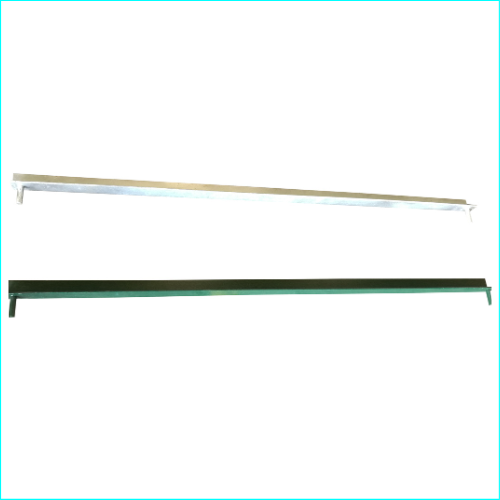

Kwik Stage Tie Bar
Tie bars interlock the ends of platform brackets, preventing planks from sliding off. These steel angle bars feature dowels at each end that insert into holes in the platform brackets. Specifically, tie bars are made from 40 mm x 40 mm angle iron with end dowels and are used to connect stage brackets in wedge lock systems, supporting steel planks on two or three board platform brackets.
CHART
| Product Code | Length (Meters) | Length (Feet) |
|---|---|---|
| CS-KSTB05 | 0.5 M | 1′ 8″ |
| CS-KSTB10 | 1.0 M | 3′ 3″ |
| CS-KSTB12 | 1.2 M | 4′ 2″ |
| CS-KSTB18 | 1.8 M | 6′ 0″ |
| CS-KSTB24 | 2.4 M | 8′ 0″ |
