Lattice Girder

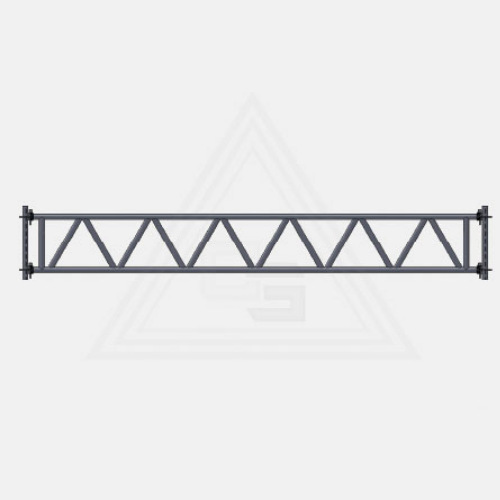

A Ring Lock Lattice Girder is a horizontal, load-bearing component in Ring Lock scaffolding, characterized by its web of interconnected diagonal members. Unlike solid beams, this lattice design offers high strength-to-weight ratio, enabling it to span larger distances or bridge gaps within the scaffold structure. It connects to the Ring Lock system via terminal wedges that fit into the rosettes on the standards. Lattice girders are crucial for creating robust scaffolding that can support heavier loads or irregular layouts.
CHART
Product Code | Bay Length (Inches) | Bay Length (Meters) |
---|---|---|
CS-LG7 | 83.66″ | 2.125 |
CS-LG8-6 | 101.26″ | 2.572 |
CS-LG10 | 120.12″ | 3.051 |
CS-LG14 | 168″ | 4.267 |
CS-LG16 | 191.98″ | 4.876 |
CS-LG18 | 216″ | 5.486 |
CS-LG20 | 240″ | 6.096 |
CS-LG21 | 252″ | 6.401 |
CS-LG28 | 336″ | 8.534 |
