Cuplock (C-Lock) Systems

C- Lock Standard verticals are manufactured from 48.3mm O.D. Tube, Provided in Various sizes with cup joints welded at 500mm, intervals. The top Cups are made from malleable castings to endure rough site handling, and welded bottom cups are pressed from high quality steel.

Welded Bottom Cups are pressed from high quality steel and captive mobile Top Cups made out of malleable casting provide firm grip to Ledger Blades making the connection rigid and to endure rough site handling.

Produced from Tube thickness 3.2mm or 4.0mm

Finish of Scaffolding available are:

• Galvanized
• Painted

Standard Sizes available

• 3000 mm
• 2500 mm
• 2000 mm
• 1500 mm
• 1000 mm

Other Sizes also available (Made to order):

• 2800 mm
• 2300 mm
• 1800 mm
• 1300 mm

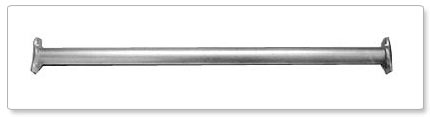

C - Lock Ledger Horizontals are available in a range of standard sizes or can be made to a special length if required. The forged blade end fits in the cup of the Vertical. The simple robust design ensure that horizontals need no maintenance.

Minimum projection of blades avoids damages in handing and uniform dimension makes the cup joint rigid.

Produced from Tube thickness 3.2mm /3.0mm Thicness

Finish of Scaffolding available are:

• Galvanized
• Painted

Standard Sizes available

• 3000 mm
• 2500 mm
• 2000 mm
• 1800 mm
• 1600 mm
• 1500 mm
• 1300 mm
• 1250 mm
• 1200 mm
• 1000 mm
• 900 mm
• 600 mm

or i.e. effective length.

Cuplock Saffolding System 1.3m OMEGA Transom is made from high grade galvanised steel, with an inverted "T" section to provide seating for Cuplok OMEGA Battens.

Manufactured using 3.2mm high grade steel, Cuplock/cup system scaffolding is 20% lighter than standard 4mm scaffolding tube.

It is the specifically designed Omega section (60mm x 40mm) which avoids the effects of weather penetration and provides a very strong supporting platform. Forge blade ends locate into the lower cup joint of the Vertical.

Finish of Scaffolding available are:

• Galvanized
• Painted

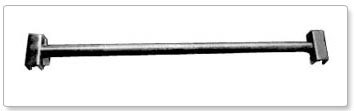

Intermediate Transom provides a safe mid-bay support for 38mm scaffold boards. They hold the ledgers in their jaw sections and prevent the central bending of the platform boards.

The fabricated jaw section at each end is turned downwards to prevent dislocation. One end is provided with an integral locking device to prevent movement along the ledger during use.

Produced from Tube thickness 3.2mm /3.0mm Thickness

Finish of Scaffolding available are:

• Galvanized
• Painted

These are available in following sizes

• 2.5 M
• 1.8 M
• 1.6 M
• 1.2 M

(Other Also can be manufactured as per Project/ Client requirements)

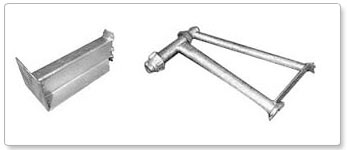

Designed to increase the overall width of the platform to seven or eight battens. Locates at the cup joint. Incorporates a cup joint for an additional inside ledger to join hop-up brackets together to prevent movement. Facility for location of handrail post if required.

Platform Brackets enable 2 or 3 plank wide platforms to be placed between the scaffold and the workface. The blade end locates into the cup on the standard and the ends of the brackets are connected to each other with Tie Bars.

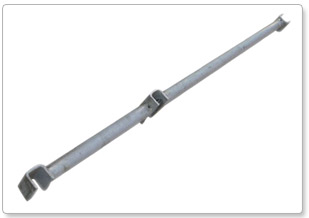

Drops into place over the ledgers and is secured with a locking device to prevent movement. Extends beyond the inside ledger to provide intermediate support to a single inside board.

For use with Hop-up brackets where distance between standards exceeds the span of scaffold boards Quiklok intermediate transoms are available for:

Size:

Cuplock Inside Board Transom 0.565 mm. (2 Board)
Cuplock Inside Board Transom 0.795 mm (3 Board)

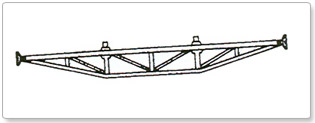

Bridging Horizontal: The Bridging horizontal creates a platform or a working space where 2.5 mtr to 5. mtr is required through the scaffold run. Bridging horizontal can be offered at discounted rates with the best quality.

Scaffolding bridging item are used to provide working platform complete with necessary guardrails for vehicle passage.

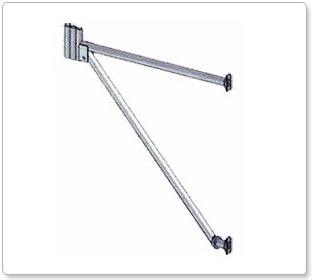

Cantilever Frames support the formwork beyond the external periphery of the slab. The frames have blade ends for locating in the cup joint & accept adjustable jacks in three positions of 1.2m, 1.25m & 1.3m.

Engineered to support normal access loads and stop-end forms; a safety device is incorporated locking that they cannot be dislodged when striking. Provision is made.

Sizes:

Our company offers Beam Bracket used to support the drop beams encountered within the regular slab support grid. This eliminates the need for the beam bottoms to be propped up from the ground.

The Beam Brackets are capable of receiving adjustable jacks for reaching the beam bottom level. To support Beams, eliminating the need of extra rows of support under the Beams. The Beam Bracket may be located on top most cup joints.

Our clients can avail from us a highly durable range of Beam Bracket which is highly appreciated by our clients for their various features such as corrosion resistance, excellent strength and durability. Manufactured using premium quality raw material, these finds application in building and construction industry.

Specifications:

• Width: 20mm, 25mm
• Thickness: 2.00mm
• Hole dia: 4mm, 5mm, 6mm

Fixed forkhead along with universal jack can be used with Cuplock standards to gives height adjustment.

Our Fixed Fork Head meets a wide range of varying heights. Our Fixed Fork Head is designed to provide substantial bearing area. Fixed Fork Head is widely used in many leading industries. It has a standard acme threads and is available at discounted rates. They can also be customized as per the requirements and specifications of the clients.

Sizes Available:

• 0.086 M X 0.2 M
• 0.162 M X 0.15 M

We are Designed Adaptor units provide for the easy conversion of Dropheads from the Waffle and Trough or Metriform Support Systems for use with Quiklok.

The Socket Base is used in conjunction with the Universal jack and is drilled to allow for the insertion of a securing bolt if required. The dimensions are as mentioned.

Our company offers universal jack . These universal jack are manufactured from optimum quality, which makes them durable with high efficiency. These universal jack are efficient in lifting heavy weights. The universal jack are available in various specifications at most competitive prices.

The universal jack provides a method of adjustment which can be used at either the top or bottom of a scaffold support structure. It is used in conjuction with forkeads and adaptors and can accept the full loading capacity of cuplock when fully braced. These universal jack can be supplied with welded base plate as adjustable jack.

Our range of spigot are best suited to building industries and related industries. These are used when necessary Verticals are connected end to end. This bolted to the lower Vertical.

Made out of 300 mm long square tube and with out and bolt spigot are used for connecting verticals

For diagonal bracing of scaffolding a range of longitudinal braces made out of 20 mm N. B. 'L' tubes with swivel forged blades at either ends to be fitted into cups of Cuplock standards are available.

Sizes Available:

• 2.50M X 2.00M
• 2.50M X 1.50M
• 1.80M X 2.00M
• 1.80M X.1.50M
